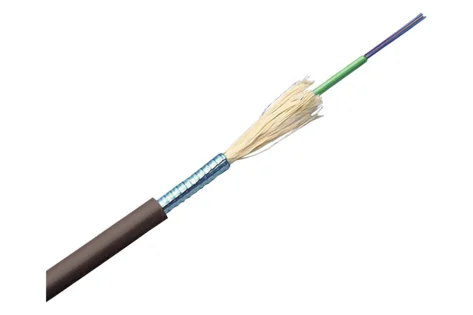

The outdoor cable for applications in harsh conditions. It contains a central gel-filled loose tube of a diameter of 2.8 mm for 2 - 16 fibers or 3.5 mm for 18 - 24 fibers. The outer sheath is made of a 0.155 mm corrugated steel armor plus a 1.5 mm PE sheath.
Sheath: PE, black
Fiber: singlemode (SM) E9/125
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
IEC 60794-1-2 E11 IEC 60794-1-2 E3 IEC 60794-1-2 F1 IEC 61034 IEC 60754-2 ISO/IEC 11801:2002 |
| Cable type |
Central loose tube cable |
| Jacket material |
PE |
| Cable jacket characteristics |
Cable, water-tight Zero-halogen |
| Armour |
Steel-armored |
| Cable overall diameter | 8.5 mm |
| Fiber type |
G.652.D |
| Fiber Count | 8 |
| Conductor type |
loose tube, gel-filled |
| Fiber diameter |
E9 / 125 µm |
| Application |
outdoor-use |
| DIN/VDE Code | A-D(ZN)(SR)2Y |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2000.0 m / 6562 ft |
| Color |
black |
