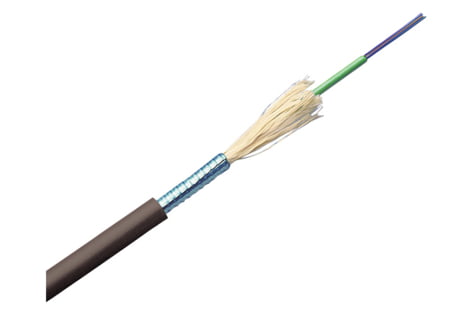

Central Loose Tube Cable A-D(ZN)(SR)2Y, OM3, Eca, 24-fibers (R311391)

Central Loose Tube Cable A-D(ZN)(SR)2Y, OM3, Eca, 24-fibers (R311391)

The outdoor cable for applications in harsh conditions. It contains a central gel-filled loose tube of a diameter of 2.8 mm for 2 - 16 fibers or 3.5 mm for 18 - 24 fibers. The outer sheath is made of a 0.155 mm corrugated steel armor plus a 1.5 mm PE sheath.

  • Sheath: PE, black

  • Fiber: multimode (MM) G50/125

Артикул: R311391

Technical Data

DESCRIPTION VALUE/VALUE RANGE
Standard / norm

IEC 60794-1-2 E1

IEC 60794-1-2 E11

IEC 60794-1-2 E3

IEC 60794-1-2 F1

IEC 60794-1-2 E4

IEC 60794-1-2 E7

IEC 60794-1-2 E10

Cable type

Central loose tube cable

Jacket material

PE

Cable jacket characteristics

Cable, water-tight

Armour

Corrugated steel tape armoured (CSTA)

Cable overall diameter 9.5 mm
Fiber class

OM3

Fiber Count 24
Conductor type

loose tube, gel-filled

Fiber diameter

G50 / 125 µm

DIN/VDE Code A-D(ZN)(SR)2Y

Mechanical Data

DESCRIPTION VALUE/VALUE RANGE
Cable length 2000.0 m / 6562 ft
Color

black
