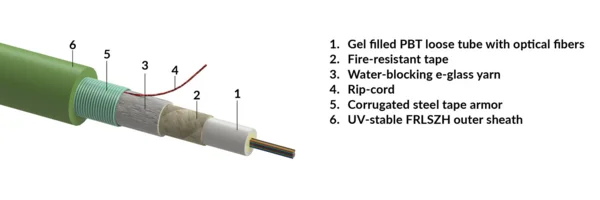

Central loose tube cable, fire-resistant, universal-use, CSTA-steel tape armour, FRLSZH sheath - green, Cca, 01x24-fibers G657.A1 (R856003)

Central loose tube cable, fire-resistant, universal-use, CSTA-steel tape armour, FRLSZH sheath - green, Cca, 01x24-fibers G657.A1 (R856003)

Central loose tube cable, fire-resistant, universal-use, CSTA-steel tape armour, FRLSZH sheath - green, Cca, 01x24-fibers G657.A1 (R856003)

Артикул: R856003 Категорія:
Environmental Characteristics

Operation temperature

-30 °C to +70 °C / -22 °F to +158 °F

Temperature cycling acceptance criteria

Δα ≤ 0,05 dB

Temperature cycling

-30 °C +70 °C / -22 °F +158 °F

Temperature cycling - reversible acceptance criteria

Δα ≤ 0,15 dB, reversible

Temperature cycling - reversible test method

IEC 60794-1-22:F1

Temperature cycling test method

IEC 60794-1-22:F1

Temperature cycling - reversible

-35 °C +70 °C / -31 °F +158 °F

Transport / store temperature

-35 °C to +70 °C / -31 °F to +158 °F

Mechanical Data

Crush resistance - short term

7000 N/100mm

Tensile performance - during installation

3000 N

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Tensile Performance during Installation TestMethod

IEC 60794-1-21:E1

Repeated bending acceptance criteria

no damage

Repeated bending test method

IEC 60794-1-21:E6

Repeated bending

R=20 x cable diameter, 25 cycles

Cable bend - acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion

L = 1 m, rotation angle ±180°, 10 cycles

Torsion acceptance criteria

no damage

Impact resistance acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion test method

IEC 60794-1-21:E7

Impact resistance

20 Nm, 3 impacts, d=20 mm, R=300 mm

Crush resistance - long term acceptance criteria

Δα ≤ 0,05 dB prior release, no damage

Tensile performance - in service acceptance criteria

Δα ≤ 0,05 dB

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service

1000 N

Cable weight

90.0 kg/km / 60 lbs/1000ft

Technical Data

Fiber type

G.657.A1

Cable type

Central loose tube cable

Jacket material

UV stable FRLSZH

Fiber Count

24

CPR classification

Cca

Armour

Corrugated steel tape armoured (CSTA)

Fire resistance

Pass

Fire resistance test method

EN 60331-25 (180 min at 750°C)

Flammability - vertical cable bundle test method

IEC 60332-3-22

Flammability - vertical single cable test method

IEC 60332-1-2

Halogen free, acid gases

Pass

Halogen free, Acid gases test method

EN 60754-2

Fiber color coding

1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink13.-24.: red, green, blue, yellow, white, grey, brown, violet, turquoise, natural, orange, pink(ring-marked)

Sheath marking

Ink-Jet, black

Smoke density

Pass

Smoke density test method

EN 61034-1, EN 61034-2

Cable version

Fire-resistant

Application

universal use

Loose tube diameter [mm]

3

Prod
