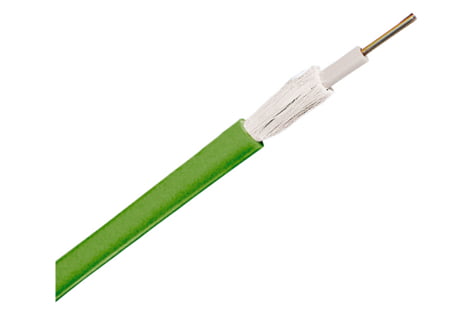

This cable construction features a central gel-filled loose tube with a diameter of 2.8 mm for 2 - 16 fibers or 3.5 mm for 18 - 24 fibers. The reinforced glass yarns enhance strength and tensile force and is making it to your ideal partner for secondary cabling applications (backbone) in generic cabling systems.
Sheath: LSZH, green
Fiber: multimode (MM) G50/125
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
IEC 60794-1-2 E11 IEC 60794-1-2 E3 IEC 60794-1-2 F1 IEC 60332-3C IEC 61034 IEC 60754-2 ISO/IEC 11801:2002 IEC 60794-1-2 E1 |
| Cable type |
Central loose tube cable |
| Jacket material |
LSZH |
| CPR classification | Eca |
| Cable jacket characteristics |
Cable, water-tight |
| Armour |
Rodent protection |
| Cable overall diameter | 6.5 mm |
| Fiber type |
OM2 |
| Fiber Count | 8 |
| Conductor type |
loose tube, gel-filled |
| Fiber diameter |
G50 / 125 µm |
| Application |
universal-use |
| DIN/VDE Code | U-DQ(ZN)BH |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2000.0 m / 6562 ft |
| Color |
green |
