| Operation temperature |
-20 °C to +60 °C / -4 °F to +140 °F |
| Temperature cycling acceptance criteria |
Δα ≤ 0,05 dB |
| Temperature cycling |
-20 °C +60 °C / -4 °F +140 °F |
| Temperature cycling - reversible acceptance criteria |
Δα ≤ 0,15 dB, reversible |
| Temperature cycling - reversible test method |
IEC 60794-1-22:F1 |
| Temperature cycling test method |
IEC 60794-1-22:F1 |
| Temperature cycling - reversible |
-25 °C +60 °C / -13 °F +140 °F |
| Transport / store temperature |
-25 °C to +60 °C / -13 °F to +140 °F |
| Crush resistance - short term |
1000 N/100mm |
| Tensile performance - during installation |
1000 N (5 min.) |
| Tensile performance - during installation acceptance criteria |
Δα ≤ 0,05 dB after test |
| Tensile Performance during Installation TestMethod |
IEC 60794-1-21:E1A |
| Repeated bending acceptance criteria |
no damage |
| Kink |
d=20 x cable diameter |
| Repeated bending test method |
IEC 60794-1-21:E6 |
| Kink acceptance criteria |
no kink |
| Repeated bending |
R=10 x cable diameter, 25 cycles, m = 4Kg |
| Cable bend - acceptance criteria |
no fiber breakage |
| Torsion |
L = 1 m, rotation angle ±180°, 10 cycles, F= 20N |
| Torsion acceptance criteria |
no fiber breakage |
| Impact resistance acceptance criteria |
no fiber breakage |
| Torsion test method |
IEC 60794-1-21:E7 |
| Impact resistance |
5 Nm, 3 impacts, d=20 mm, R=12,5 mm |
| Crush resistance - long term acceptance criteria |
Δα ≤ 0,05 dB prior release, no damage |
| Cable weight |
32.0 kg/km / 21 lbs/1000ft |
| Fiber type |
OM5 |
| Cable type |
gel-free indoor duct cable |
| Jacket material |
FRLSZH |
| Fiber Count |
12 |
| CPR classification |
B2ca |
| Armour |
Rodent protection |
| Fiber color coding |
1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink13.-24.: red, green, blue, yellow, white, grey, brown, violet, turquoise, natural, orange, pink(ring-marked) |

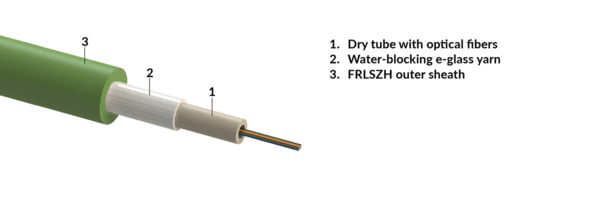

| Cable version |
gel-free central loose tube |
| Application |
indoor use |
| Loose tube diameter [mm] |
2.4 |
