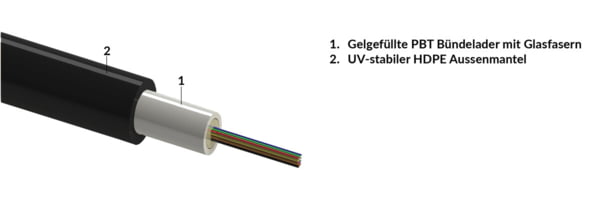

Central loose tube cable, Micro, outdoor-use, no armour, HDPE sheath - black, 01x24-fibers G657.A1 (R855493)

Central loose tube cable, Micro, outdoor-use, no armour, HDPE sheath - black, 01x24-fibers G657.A1 (R855493)

Central loose tube cable, Micro, outdoor-use, no armour, HDPE sheath - black, 01x24-fibers G657.A1 (R855493)

Артикул: R855493 Категорія:
Environmental Characteristics

Operation temperature

-20 °C to +70 °C / -4 °F to +158 °F

Temperature cycling acceptance criteria

Δα ≤ 0,05 dB

Temperature cycling

-20 °C +70 °C / -4 °F +158 °F

Temperature cycling - reversible acceptance criteria

Δα ≤ 0,15 dB, reversible

Temperature cycling - reversible test method

EN 60794-1-22:F1

Temperature cycling test method

EN 60794-1-22:F1

Temperature cycling - reversible

-30 °C +70 °C / -22 °F +158 °F

Transport / store temperature

-30 °C to +70 °C / -22 °F to +158 °F

Mechanical Data

Crush resistance - short term

500 N/100mm

Tensile performance - during installation

50 N (short term)

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Tensile Performance during Installation TestMethod

IEC 60794-1-21:E1

Repeated bending acceptance criteria

no damage

Kink

d=40 x cable diameter

Repeated bending test method

IEC 60794-1-21:E6

Kink acceptance criteria

no kink

Repeated bending

R=40 x cable diameter, 25 cycles

Cable bend - acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Kink test method

EN 60794-1-21:E10

Torsion

L = 1 m, rotation angle ±180°, 10 cycles

Torsion acceptance criteria

no damage

Impact resistance acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion test method

IEC 60794-1-21:E7

Impact resistance

1 Nm, 3 impacts, d=20 mm, R=300 mm

Cable weight

14.0 kg/km / 9 lbs/1000ft

Technical Data

Fiber type

G.657.A1

Cable type

blowable Micro cable

Jacket material

UV stable HDPE

Fiber Count

24

CPR classification

Fca

Fiber color coding

1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink13.-24.: red, green, blue, yellow, white, grey, brown, violet, turquoise, natural, orange, pink(ring-marked)

RoHS

Pass

Sheath marking

Ink-Jet, white

Cable version

central loose tube

Application

outdoor use

Loose tube diameter [mm]

3
