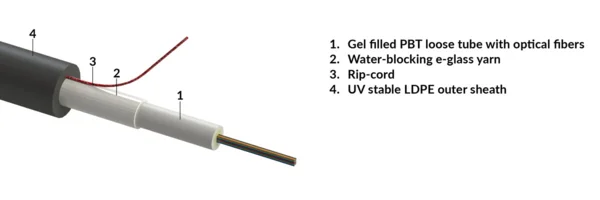

Central loose tube cable, outdoor-use, imp. rodent protection, LDPE sheath - black, 01x08-fibers G652.D (R855587)

Central loose tube cable, outdoor-use, imp. rodent protection, LDPE sheath - black, 01x08-fibers G652.D (R855587)

Артикул: R855587 Категорія:
Environmental Characteristics

Operation temperature

-20 °C to +70 °C / -4 °F to +158 °F

Temperature cycling acceptance criteria

Δα ≤ 0,05 dB

Temperature cycling

-20 °C +70 °C / -4 °F +158 °F

Temperature cycling - reversible acceptance criteria

Δα ≤ 0,15 dB, reversible

Temperature cycling - reversible test method

IEC 60794-1-22:F1

Temperature cycling test method

IEC 60794-1-22:F1

Temperature cycling - reversible

-25 °C +70 °C / -13 °F +158 °F

Transport / store temperature

-25 °C to +70 °C / -13 °F to +158 °F

Mechanical Data

Crush resistance - short term

2000 N/100mm

Tensile performance - during installation

1800 N

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Tensile Performance during Installation TestMethod

IEC 60794-1-21:E1

Repeated bending acceptance criteria

no damage

Repeated bending test method

IEC 60794-1-21:E6

Repeated bending

R=20 x cable diameter, 25 cycles

Cable bend - acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion

L = 1 m, rotation angle ±180°, 10 cycles

Torsion acceptance criteria

no damage

Impact resistance acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion test method

IEC 60794-1-21:E7

Impact resistance

10 Nm, 3 impacts, d=20 mm, R=300 mm

Crush resistance - long term acceptance criteria

Δα ≤ 0,05 dB prior release, no damage

Tensile performance - in service acceptance criteria

Δα ≤ 0,05 dB

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service

600 N

Cable weight

37.0 kg/km / 25 lbs/1000ft

Technical Data

Fiber type

G.652.D

Cable type

Central loose tube cable

Jacket material

UV stable LDPE

Fiber Count

8

CPR classification

Fca

Armour

Intensified rodent protection

Flammability - vertical cable bundle test method

EN 60332-3-22 (cat. A)

Halogen free, acid gases

Pass

Halogen free, Acid gases test method

EN 60754-2

Fiber color coding

1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink

RoHS

Pass

Sheath marking

Ink-Jet, white

Smoke density

Pass

Smoke density test method

EN 61034-1, EN 61034-2

Cable version

n.a.

Application

outdoor use

Loose tube diameter [mm]

2.8
