| Operation temperature | -30 °C to +70 °C / -22 °F to +158 °F |
| Temperature cycling acceptance criteria | Δα ≤ 0,05 dB |
| Temperature cycling | -30 °C +70 °C / -22 °F +158 °F |
| Temperature cycling - reversible acceptance criteria | Δα ≤ 0,15 dB, reversible |
| Temperature cycling - reversible test method | IEC 60794-1-22:F1 |
| Temperature cycling test method | IEC 60794-1-22:F1 |
| Temperature cycling - reversible | -35 °C +70 °C / -31 °F +158 °F |
| Transport / store temperature | -35 °C to +70 °C / -31 °F to +158 °F |
| Crush resistance - short term | 5000 N/100mm |
| Tensile performance - during installation | 1500 N |
| Tensile performance - during installation acceptance criteria | Δα ≤ 0,05 dB after test |
| Tensile Performance during Installation TestMethod | IEC 60794-1-21:E1 |
| Repeated bending acceptance criteria | no damage |
| Repeated bending test method | IEC 60794-1-21:E6 |
| Repeated bending | R=20 x cable diameter, 25 cycles |
| Cable bend - acceptance criteria | Δα ≤ 0,05 dB after test, no damage |
| Torsion | L = 1 m, rotation angle ±180°, 10 cycles |
| Torsion acceptance criteria | no damage |
| Impact resistance acceptance criteria | Δα ≤ 0,05 dB after test, no damage |
| Torsion test method | IEC 60794-1-21:E7 |
| Impact resistance | 20 Nm, 3 impacts, d=20 mm, R=300 mm |
| Crush resistance - long term acceptance criteria | Δα ≤ 0,05 dB prior release, no damage |
| Tensile performance - in service acceptance criteria | Δα ≤ 0,05 dB |
| Tensile performance - in service test method | IEC 60794-1-21:E1 |
| Tensile performance - in service | 500 N |
| Cable weight | 84.0 kg/km / 56 lbs/1000ft |
| Fiber type | G.657.A1 |

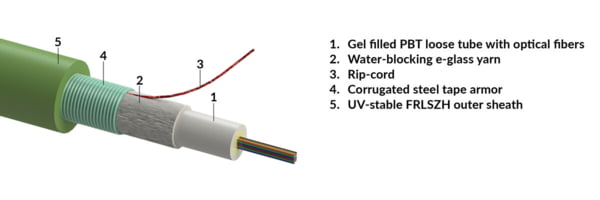

| Cable type | Central loose tube cable |
| Jacket material | UV stable FRLSZH |
| Fiber Count | 6 |
| CPR classification | Dca |
| Armour | Corrugated steel tape armoured (CSTA) |
| Flammability - vertical cable bundle test method | IEC 60332-3-22 |
| Flammability - vertical single cable test method | IEC 60332-1-2 |
| Halogen free, acid gases | Pass |
| Halogen free, Acid gases test method | EN 60754-2 |
| Sheath marking | Ink-Jet, black |
| Smoke density | Pass |
| Smoke density test method | EN 61034-1, EN 61034-2 |
| Standard put-up length on drum | 4100 m ± 5% |
| Cable version | n.a. |
| Application | universal use |
| Loose tube diameter [mm] | 3 |
