Central loose tube cable, universal-use, CSTA - steel tape armour, FRLSZH sheath - green, Fca, 01x08-fibers OM4 (R855808)

Central loose tube cable, universal-use, CSTA - steel tape armour, FRLSZH sheath - green, Fca, 01x08-fibers OM4 (R855808)

Central loose tube cable, universal-use, CSTA - steel tape armour, FRLSZH sheath - green, Fca, 01x08-fibers OM4 (R855808)

Артикул: R855808 Категорія:

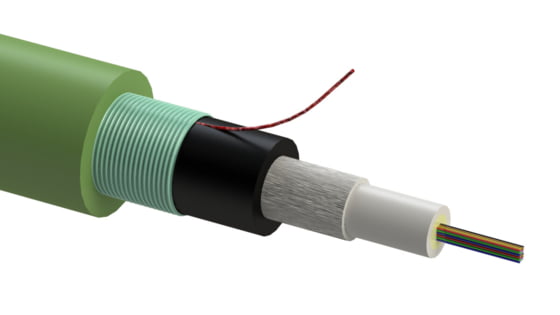

Corrugated steel tape armoured central loose tube cable with excellent mechanical protection and thus secure rodent protected.

The cable features a two jacket construction with up to 24 fibers maximum and is suitable for indoor or outdoor duct or direct buried installation.

Technical Data

DESCRIPTIONVALUE/VALUE RANGE
Cable type

Central loose tube cable

Jacket material

UV stable FRLSZH

CPR classificationFca
Armour

Corrugated steel tape armoured (CSTA)

Cable design

Double jacket

Fiber type

OM4

Fiber Count8
Application

universal-use

Cable family codeUX1ELCF
DIN/VDE CodeU-DQ(ZN)2Y(SR)H wbg
DoP no.:D9029
Loose-tube count1
Fiber count per tube24
Loose tube nominal diameter [mm]3 mm
Outer jacket nominal thickness [mm]1.2 mm
Cable outer diameter [mm]10 mm
Cable version

n.a

Standard put-up length on drum2100 m ± 5%
Maximum length on drum4100 m ± 5%
Halogen free, acid gases

Pass

Mechanical Data

DESCRIPTIONVALUE/VALUE RANGE
Cable weight115.0 kg/km / 77 lbs/1000ft
Tensile performance - in service

500 N

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service acceptance criteria

Δα ≤ 0,05 dB

Tensile performance - during installation

1500 N

Tensile Performance during Installation TestMethod

IEC 60794-1-21:E1

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Crush resistance - long term

2500 N/100mm

Crush resistance - long term test method

IEC 60794-1-21:E3A

Crush resistance - long term acceptance criteria

Δα ≤ 0,05 dB prior release, no damage

Impact resistance

20 Nm, 3 impacts, d=20 mm, R=300 mm

Impact resistance test method

IEC 60794-1-21:E4

Impact resistance acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion

L = 1 m, rotation angle ±180°, 10 cycles

Torsion test method

IEC 60794-1-21:E7

Torsion acceptance criteria

no damage

Cable bend

d=20 x cable diameter, 4 turns, 3 cycles

Cable bend - test method

IEC 60794-1-21:E11A

Cable bend - acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Repeated bending

R=20 x cable diameter, 25 cycles

Repeated bending test method

IEC 60794-1-21:E6

Repeated bending acceptance criteria

no damage

Climatic Data

DESCRIPTIONVALUE/VALUE RANGE
Temperature cycling-20 °C +70 °C / -4 °F +158 °F
Temperature cycling - reversible-30 °C +70 °C / -22 °F +158 °F
Installation temperature-5 °C +50 °C / +23 °F +122 °F
Operation temperature-20 °C to +70 °C / -4 °F to +158 °F
Transport / store temperature-30 °C to +70 °C / -22 °F to +158 °F
