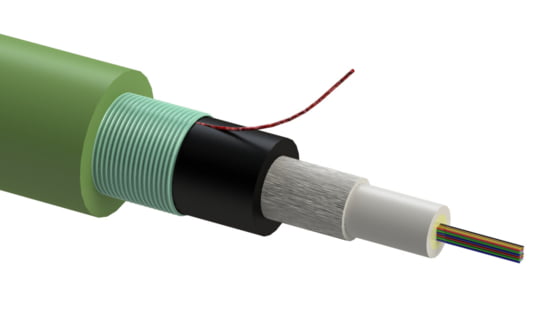

Corrugated steel tape armoured central loose tube cable with excellent mechanical protection and thus secure rodent protected.
The cable features a two jacket construction with up to 24 fibers maximum and is suitable for indoor or outdoor duct or direct buried installation.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable type |
Central loose tube cable |
| Jacket material |
UV stable FRLSZH |
| CPR classification | Fca |
| Armour |
Corrugated steel tape armoured (CSTA) |
| Cable design |
Double jacket |
| Fiber type |
G.652.D |
| Fiber Count | 24 |
| Application |
universal-use |
| Cable family code | UX1ELCF |
| DIN/VDE Code | U-DQ(ZN)2Y(SR)H wbg |
| DoP no.: | D9029 |
| Loose-tube count | 1 |
| Fiber count per tube | 24 |
| Loose tube nominal diameter [mm] | 3 mm |
| Outer jacket nominal thickness [mm] | 1.2 mm |
| Cable outer diameter [mm] | 10 mm |
| Cable version |
n.a |
| Standard put-up length on drum | 2100 m ± 5% |
| Maximum length on drum | 4100 m ± 5% |
| Halogen free, acid gases |
Pass |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable weight | 115.0 kg/km / 77 lbs/1000ft |
| Tensile performance - in service |
500 N |
| Tensile performance - in service test method |
IEC 60794-1-21:E1 |
| Tensile performance - in service acceptance criteria |
Δα ≤ 0,05 dB |
| Tensile performance - during installation |
1500 N |
| Tensile Performance during Installation TestMethod |
IEC 60794-1-21:E1 |
| Tensile performance - during installation acceptance criteria |
Δα ≤ 0,05 dB after test |
| Crush resistance - long term |
2500 N/100mm |
| Crush resistance - long term test method |
IEC 60794-1-21:E3A |
| Crush resistance - long term acceptance criteria |
Δα ≤ 0,05 dB prior release, no damage |
| Impact resistance |
20 Nm, 3 impacts, d=20 mm, R=300 mm |
| Impact resistance test method |
IEC 60794-1-21:E4 |
| Impact resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Torsion |
L = 1 m, rotation angle ±180°, 10 cycles |
| Torsion test method |
IEC 60794-1-21:E7 |
| Torsion acceptance criteria |
no damage |
| Cable bend |
d=20 x cable diameter, 4 turns, 3 cycles |
| Cable bend - test method |
IEC 60794-1-21:E11A |
| Cable bend - acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Repeated bending |
R=20 x cable diameter, 25 cycles |
| Repeated bending test method |
IEC 60794-1-21:E6 |
| Repeated bending acceptance criteria |
no damage |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Temperature cycling | -20 °C +70 °C / -4 °F +158 °F |
| Temperature cycling - reversible | -30 °C +70 °C / -22 °F +158 °F |
| Installation temperature | -5 °C +50 °C / +23 °F +122 °F |
| Operation temperature | -20 °C to +70 °C / -4 °F to +158 °F |
| Transport / store temperature | -30 °C to +70 °C / -22 °F to +158 °F |
