Name: Central loose tube cable, universal-use, no armour, FRLSZH sheath - green, Dca, 01x24-fibers OM2 (R855565) - ДП "Сінергія"
SKU: R855565

Environmental Characteristics

Operation temperature	-30 °C to +70 °C / -22 °F to +158 °F
Temperature cycling acceptance criteria	Δα ≤ 0,05 dB
Temperature cycling	-30 °C +70 °C / -22 °F +158 °F
Temperature cycling - reversible acceptance criteria	Δα ≤ 0,15 dB, reversible
Temperature cycling - reversible test method	EN 60794-1-22:F1
Temperature cycling test method	EN 60794-1-22:F1
Temperature cycling - reversible	-35 °C +70 °C / -31 °F +158 °F
Transport / store temperature	-35 °C to +70 °C / -31 °F to +158 °F

Mechanical Data

Crush resistance - short term	2000 N/100mm
Tensile performance - during installation	1000 N
Tensile performance - during installation acceptance criteria	Δα ≤ 0,05 dB after test
Tensile Performance during Installation TestMethod	IEC 60794-1-21:E1
Repeated bending acceptance criteria	no damage
Repeated bending test method	IEC 60794-1-21:E6
Repeated bending	R=20 x cable diameter, 25 cycles
Cable bend - acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Torsion	L = 1 m, rotation angle ±180°, 10 cycles
Torsion acceptance criteria	no damage
Impact resistance acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Torsion test method	IEC 60794-1-21:E7
Impact resistance	10 Nm, 3 impacts, d=20 mm, R=300 mm
Crush resistance - long term acceptance criteria	Δα ≤ 0,05 dB prior release, no damage
Tensile performance - in service acceptance criteria	Δα ≤ 0,05 dB
Tensile performance - in service test method	IEC 60794-1-21:E1
Tensile performance - in service	300 N
Cable weight	41.0 kg/km / 27 lbs/1000ft

Technical Data

Fiber type	OM2

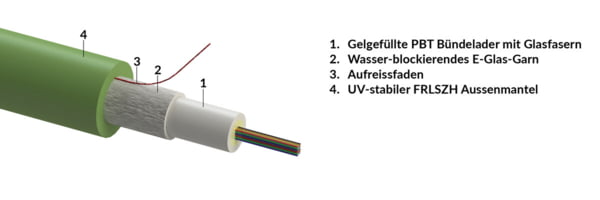

Cable type	Central loose tube cable
Fiber Count	24
CPR classification	Dca
Armour	Rodent protection
Flammability - vertical cable bundle test method	IEC 60332-3-22
Flammability - vertical single cable test method	IEC 60332-1-2
Halogen free, acid gases	Pass
Halogen free, Acid gases test method	EN 60754-2
Fiber color coding	1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink13.-24.: red, green, blue, yellow, white, grey, brown, violet, turquoise, natural, orange, pink(ring-marked)
RoHS	Pass
Smoke density	Pass
Smoke density test method	EN 61034-1, EN 61034-2
Cable version	n.a.
Application	universal use
Loose tube diameter [mm]	3
