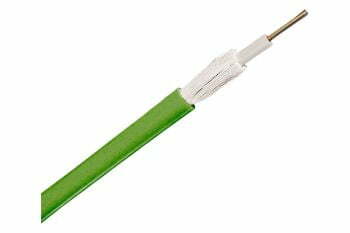

CLT LSZH I/A-DQ(ZN)BH 12 OS2 (R840486)

CLT LSZH I/A-DQ(ZN)BH 12 OS2 (R840486)

CLT LSZH I/A-DQ(ZN)BH 12 OS2 (R840486)

Артикул: R840486 Категорія:
Environmental Characteristics

Operation temperature

-25 °C to +60 °C / -13 °F to +140 °F

Water penetration

L = 3 m, h = 1 m, 24 h

Water penetration test method

IEC 60794-1-22:F5B

Water penetration acceptance criteria

no water leakage

Transport / store temperature

-40 °C to +60 °C / -40 °F to +140 °F

Mechanical Data

Cable length

2,000 m

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service

1000 N

Technical Data

Conductor type FO

loose tube, gel-filled

Fiber type

G.652.D

Fiber diameter

n.a.

Cable type

Central loose tube cable

Jacket material

LSZH

Fiber Count

12

CPR classification

Dca

Standard

EN 50173-1

ISO 11801:2011

IEC 60794-2-20

IEC 60332-1-2

IEC 60754-2

IEC 60754-1

IEC 61034-2

CPR fire class: EN50575

Armour

Waterblocked E-Glass fiber elements

Application

universal use

Loose tube diameter [mm]

2.8

Prod
