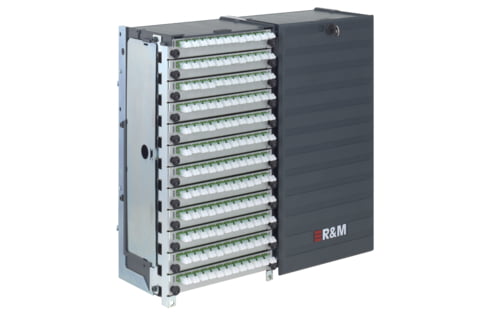

CombiMODULE Right ODF, 288xLC-Duplex G.652.D, APC, ceramic, C/1, SE ANT (R807372)

CombiMODULE Right ODF, 288xLC-Duplex G.652.D, APC, ceramic, C/1, SE ANT (R807372)

CombiMODULE Right ODF, 288xLC-Duplex G.652.D, APC, ceramic, C/1, SE ANT (R807372)

Completely assembled splice and patch unit with 576 fiber connections from patch insert to SCM splice trays SE.

Артикул: R807372 Категорія:

Scope of supply

  • Complete CombiMODULE housing with fiber management

  • 12 Patch inserts, each equipped with 24 x LC-Duplex adapters. System connection cables inserted and put in place.

  • Tray brackets for SCM trays

  • SCM cover set

  • 24 SCM splice trays for crimp splice protection type (ANT)

  • Labeling set

  • Installation instructions

Mechanical Data

Dimensions

460.0 mm x 450.0 mm x 190.0 mm / 18.11 in x 17.717 in x 7.48 in (W x H x D)

Technical Data

Fiber type

Singlemode (SM)

Fiber class

G.652.D (OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

288

Connector type (A)

LC-Duplex

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

patch panel

Assembly

fully populated

Capacity (ports)

288

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-20

Fan-out color code: DIN VDE 0888
