Connection Kit C6A/s-1.0m (R872827)

Connection Kit C6A/s-1.0m (R872827)

Connection Kit C6A/s-1.0m (R872827)

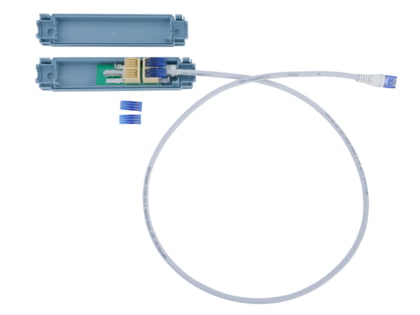

• Connection cable RJ45 for use with the single plug connection model ( Modular Plug Terminated Link (MPTL). The reliable R%M freenet patch cable with a small RJ45 plug is equipped with a cable coupler for connection to all common installation cables. This allows the easy connection of passive & activedevices, where space is not sufficient for the field assembled FM45 connector.

Артикул: R872827 Категорія:
Electrical Data

Input-Output Resistance

> 20 Ω

Contact Resistance

≤ 5 mΩ

Environmental Characteristics

Operation temperature

-10 °C to +60 °C / +14 °F to +140 °F

Mechanical Data

Dimensions

144.0 mm x 33.0 mm x 22.0 mm / 5.669 in x 1.299 in x 0.866 in (W x H x D)

Color Code RAL

7035 Light gray

Material

plastic (PC-GF10)

Technical Data

Wire type

Wire or stranded wire

Conductor Construction

AWG 22 - 26

Cable overall diameter

6.00

PoE

Yes

Standard

IEC 60529-6

IEC 60603-7

IEC 60603-7-1

Complies with Category 6 ISO requirements of the standard ISO/IEC 11801

IEC 60068-2

Connection cable RJ45 for use with the single plug connection model ( Modular Plug Terminated Link (MPTL). The reliable R%M freenet patch cable with a small RJ45 plug is equipped with a cable coupler for connection to all common installation cables. This allows the easy connection of passive & active devices, where space is not sufficient for the field assembled FM45 connector.
