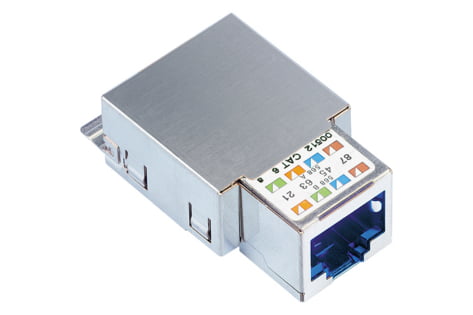

Connection Module Cat. 6, 1xRJ45/s, Flap Jack, 20x (R305764)

Connection Module Cat. 6, 1xRJ45/s, Flap Jack, 20x (R305764)

The module is designed for use with Flap Jack module holders and Flap Jack wall plates.

Артикул: R305764 Категорія:

Scope of supply

  • RJ45 Cat. 6 connection module, shielded, without mounting plate

  • Modified EMC cover

  • Dust cover

  • Cable tie

  • Installation instructions

Mechanical Data

Dimensions

14.4 mm x 22.8 mm x 41.6 mm / 0.567 in x 0.898 in x 1.638 in (W x H x D)

Color

blue

Material

plastic: PC, UL 94 V-0

Technical Data

Category connector (A)

Cat. 6

Connector type (A)

RJ45

Shielding connector (A)

shielded

PoE

Yes

Connector class

connection module

Wiring diagram

T568A and T568B

Holder for connector / module

Flap Jack

Poles

8

Standard

EN 50173-1

UL Listed

IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets

ISO/IEC 11801
