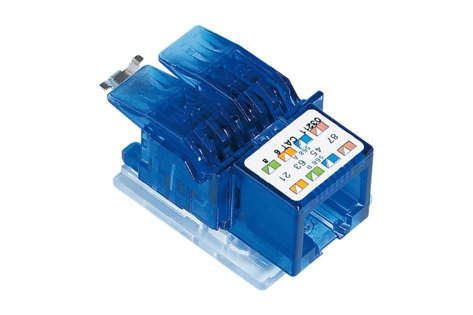

Connection Module Cat. 6, 1xRJ45/u, 100x (R304328)

Connection Module Cat. 6, 1xRJ45/u, 100x (R304328)

Connection Module Cat. 6, 1xRJ45/u, 100x (R304328)

Артикул: R304328 Категорія:

Scope of supply

  • RJ45 Cat. 6 connection module, unshielded

  • Mounting plate

  • Dust cover

  • Cable tie

  • Installationinstructions

Mechanical Data

Dimensions

17.0 mm x 21.5 mm x 41.0 mm / 0.669 in x 0.846 in x 1.614 in (W x H x D)

Color

blue

Material

plastic: PC, UL 94 V-0

Technical Data

Category connector (A)

Cat. 6

Connector type (A)

RJ45

Shielding connector (A)

unshielded

PoE

Yes

Connector class

connection module

Wiring diagram

T568A and T568B

Holder for connector / module

Mounting plate

Poles

8

Standard

EN 50173-1

UL Listed

IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets

ISO/IEC 11801

Connection Module, Cat.6, 1 x RJ45, unshielded,for the establishing of transmission channels of class E with up to 4 plugged connections, complies with Category 6 requirements ofthe standards ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) as well as TIA/EIA 568.2-D, de-embedded tested in acc. with IEC 60603-7-4, interoperable and backwards compatible with Cat. 5e and Cat. 5.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 55 m.

Tested on the basis of the R&M production control including 100% routine test.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain reliefand >20 insertion cycles, contact resistance <50 mOhm, dielectric strength >1000 Veff. With integral cable strain relief, including dust cover.

Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6, unshielded, with dust cover, cable tie and installation instructions.
