Connection Module Cat. 6, 1xRJ45/u, Snap-in, black, 24x (R512369)

Connection Module Cat. 6, 1xRJ45/u, Snap-in, black, 24x (R512369)

Артикул: R512369 Категорія:

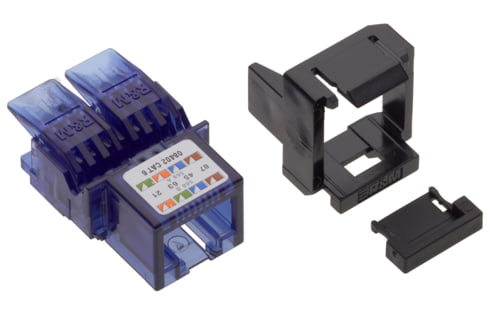

Scope of supply

  • RJ45 Cat. 6 connection module, unshielded

  • Snap-in adapter

  • Dust cover

  • Cable tie

  • Installation instructions

Mechanical Data

Dimensions

18.2 mm x 22.7 mm x 41.3 mm / 0.717 in x 0.894 in x 1.626 in (W x H x D)

Color

module, blue / Snap-in adapter, black (RAL 9005)

Material

plastic: PC, UL 94 V-0

Technical Data

Category connector (A)

Cat. 6

Connector type (A)

RJ45

Shielding connector (A)

unshielded

PoE

Yes

Connector class

connection module

Wiring diagram

T568A and T568B

Holder for connector / module

Snap-in

Poles

8

Standard

EN 50173-1

UL Listed

IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets

ISO/IEC 11801

RJ45 connection module of Category 6, for the establishing of transmission channels of class E with up to 4 plugged connections, complies with Category 6 requirements of the standards ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) as well as TIA/EIA 568.2-D, de-embedded tested in acc. with IEC 60603-7-4, interoperable and backwards compatible with Cat. 5e and Cat. 5.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 55 m.

Tested in line with R&M's manufacturing control, performing 100% inspection.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance <50 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. With integral cable strain relief, including dust cover.

Mounting dimensions 14.9 x 19.5 mm, max. material thickness 1.6 mm.

Material: halogen-free and heavy-metalfree in acc. with EU directives RoHS 2.

Special package for installers, containing connection module Cat. 6, unshielded, dust cover, snap-in frame (black), cable tie and installation instructions.
