The module for the highest standards. Guarantees the best performance reserves for 10G Ethernet cabling and beyond.
unshielded connection modules, part of the Advanced cabling system, are ideal for voice, fast data transmissions and high bandwidth applications. This high-performance Cat. 6
Amodule is perfect for use in 10 Gigabit Ethernet (10GBASE-T) and future high-speed applications to 500 MHz.

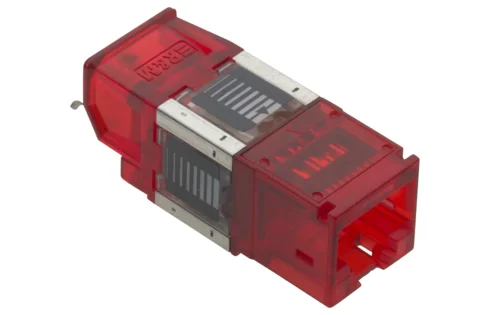

RJ45 Cat. 6
AISO connection module, unshielded, without mounting plate
|Category connector (A)||
Cat. 6A ISO
|Connector type (A)||
|Shielding connector (A)||
T568A and T568B
|Holder for connector / module||
Special (without mounting plate)
IEC 60603-7-41: Electrical Characteristics of the Telecommunication Outlets
RJ45 connection module of Cat. 6
ISO, for the setting up of transmission channels of Class E
with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) and Class F on 2 pairs, complies with Cat. 6
requirements of the standards ISO/IEC 11801, EN 50173-1 as well the U.S. standard Cat. 6
Aaccording to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-41 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.
Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.
Tested in line with R&M's manufacturing control, performing 100%inspection.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with >20 insertion cycles, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. 90° wire orientation withoutbending cable. With integral cable strain relief, including dust cover.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 6
AISO, unshielded,with dust cover, cable tie and installation instructions.
