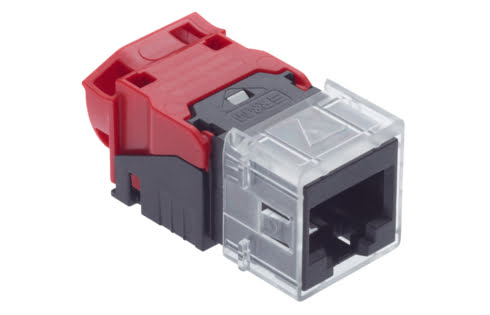

Connection Module Cat. 6A EL, 1xRJ45/u, adapter No.1, 10x (R813521)

Connection Module Cat. 6A EL, 1xRJ45/u, adapter No.1, 10x (R813521)

Connection Module Cat. 6A EL, 1xRJ45/u, adapter No.1, 10x (R813521)

Артикул: R813521 Категорія:

Scope of supply

  • RJ45 Cat. 6
    AEL connection module, unshielded

  • Adapter No.1

  • Dust cover

Mechanical Data

Color

black / red

Technical Data

Category connector (A)

Cat. 6A ISO

Connector type (A)

RJ45

Shielding connector (A)

unshielded

PoE

Yes

Connector class

connection module

Wiring diagram

T568A and T568B

Poles

8

Standard

IEC 60603-7-41: Electrical Characteristics of the Telecommunication Outlets

UL Recognized

ISO/IEC 11801

EN 50173-1

RJ45 connection module of Cat. 6
A
ISO, for the setting up of transmission channels of Class E
A
with up to 4 connectors acc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1), complies with Cat. 6
A
requirements of the standards ISO/IEC 11801, EN 50173-1 as well the U.S. standard Cat. 6
Aaccording to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-41 and 60512-27-100, interoperable and backwards compatible with Category6 and Category 5e.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100% inspection. Each module has an own serial number and is traceable.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with ≥4 insertion cycles acc. to IEC 60352-3, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. With integral cable strain relief, including dust cover. Red/ black plastic housing.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6
AEL, red / black, unshielded, dust cover and adapter No.1.
