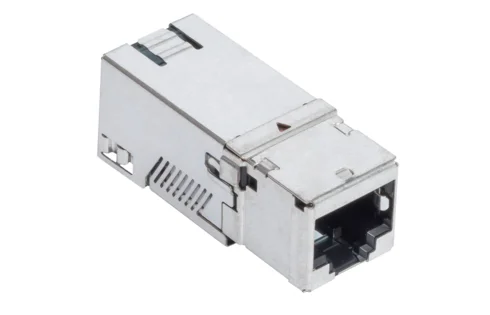

The R&Mfreenet Cat 8.1 shielded connection module, part of the freenet cabling system, are ideal for very fast data transmissions and high bandwidth applications. This high-performance Cat 8.1 module is perfect for use in 25/40 Gigabit Ethernet (25GBASE-T / 40GBASE-T) and future high-speed applicationsup to 2000 MHz.
• RJ45 Cat. 8.1 connection module, shielded
• EMC cover
• Dust cover
• Cable tie
• Installation instructions
< 40 mΩ
> 500 MΩ (100 V DC)
≤ 5 mΩ
-10 °C to +60 °C / +14 °F to +140 °F
|Transport / store temperature||
-40 °C to +70 °C / -40 °F to +158 °F
43.2 mm x 15.5 mm x 15.6 mm / 1.701 in x 0.61 in x 0.614 in (W x H x D)
silver / black
plastic: PC, UL 94 V-0
|Shield Module Material||
|Category connector (A)||
|Connector type (A)||
|Shielding connector (A)||
Yes up to type 3
T568A and T568B
|Holder for connector / module||
Special (without mounting plate)
>1.2µm gold over nickel
RJ45 connection module of Cat. 8.1 for the setting up of transmission channels of Class I with up to 2 plugged connections acc. to ISO/IEC 11801, EN 50173-1 as well the U.S. standard Cat. 8 according to TIA/EIA 568.2-D, interoperable and backwards compatible with Category 6A, 6 and 5e.
Suitable for 40GBASE-T applications in acc. with IEEE 802.3bq™ up to 2000 MHz and 30m.
Tested in line with R&M's manufacturing control, performing 100% inspection.
Compatible with standard plugs RJ45, connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contactsfor ≥750 mating cycles, IDC contacts with ≥20 insertion cycles, contact resistance ~5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002 up to type 3. 90° wire orientation without bending cable. With integral cable strain relief, including dust cover. Shield contacting by patented shield lance with integral cable strain relief, shield material tin-coated bronze, ground contacting through 1 contact finger for flat connectors 4.8 x 0.5 mm.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 8.1, shielded, with EMC cover, dust cover, cable tie and installation instructions.
