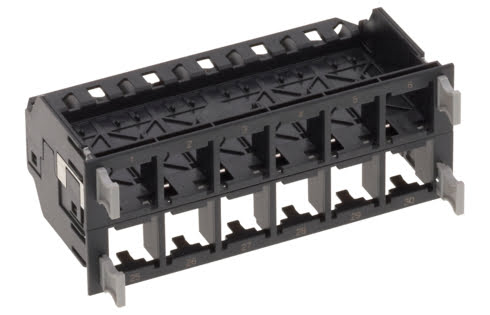

Connection Module Holder HD, 4x 12-port/s, Cat. 6A, black (R512731)

Connection Module Holder HD, 4x 12-port/s, Cat. 6A, black (R512731)

To be mounted into 19" 1U HD Basic and HD patch panels, shielded. The ports are consecutively numbered from 1 to 48.

Артикул: R512731

Scope of Supply

  • 4 12-port/s connection module holders HD

  • Grounding system

  • Cable ties

  • Manual grounding concept

Technical Data

DESCRIPTION VALUE/VALUE RANGE
Protection class IP

IP 20

PoE Yes
Shielding connector (A)

shielded

Assembly

empty

Rack mounting version

sub-rack

Capacity (ports) 12

Mechanical Data

DESCRIPTION VALUE/VALUE RANGE
Dimensions 43.2 mm x 109.9 mm x 67.0 mm / 1.701 in x 4.327 in x 2.638 in (W x H x D)
Color Code RAL

9005 Jet black

Material

plastic: PC, fiber-glass reinforced, halogen-free

Connection module holders HD, 12-port, shielded, plastic (PC), fiberglass-reinforced, halogen-free, color black (RAL 9005).

Automatic ground contacting by spring contacts.

With a capacity of up to 12 shielded RJ45 connection modules of Category 6A ISO, Class EA for the establishing of transmission channels with up to 4 plugged connections.

Type Image Description Product No.
Panel modules

Connection Module Cat. 8.1, 1xRJ45/s, Special, 100x
R847825 ADD TO WISH LISTREMOVE FROM WISH LIST
Panel modules

Connection Module Cat. 8.1, 1xRJ45/s, Special, 10x
R847824 ADD TO WISH LISTREMOVE FROM WISH LIST
Panel modules

Connection Module Cat. 6A, 1xRJ45/s, Special, 100x
R510088 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Label Holder HD
R512430 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Hinged Dust Cover, anthracite
R512748 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Hinged Dust Cover, blue
R512749 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Hinged Dust Cover, brown
R512750 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Hinged Dust Cover, yellow
R512751 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Hinged Dust Cover, gray
R512752 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Hinged Dust Cover, green
R512753 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Hinged Dust Cover, red
R512754 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Hinged Dust Cover, violet
R512755 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Hinged Dust Cover, white
R512756 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Plug Guard RJ45, green
R512757 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Plug Guard RJ45, white
R512758 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

HD Plug Guard RJ45, red
R512759 ADD TO WISH LISTREMOVE FROM WISH LIST
