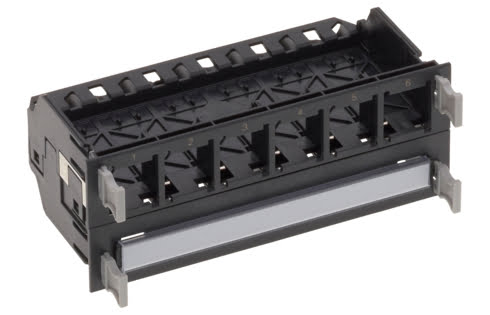

Connection Module Holder HD, 4x 6-port/s, Cat. 6A with blind element, black (R512732)

Name: Connection Module Holder HD, 4x 6-port/s, Cat. 6A with blind element, black (R512732) - ДП "Сінергія"
SKU: R512732

Connection Module Holder HD, 4x 6-port/s, Cat. 6A with blind element, black (R512732)

To be mounted into 19" 1U HD Basic and HD patch panels, shielded. The ports are consecutively numbered from 1 to 24.

Артикул: R512732 Категорія: Misc

Scope of supply

4 6-port/s connection module holders HD
Grounding system
Cable ties
Manual grounding concept

Mechanical Data

Dimensions	43.2 mm x 109.9 mm x 67.0 mm / 1.701 in x 4.327 in x 2.638 in (W x H x D)
Color Code RAL	9005 Jet black
Material	plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Shielding connector (A)	shielded
PoE	Yes
Rack mounting version	sub-rack
Assembly	empty
Capacity (ports)	6

Connection module holders HD, 6-port with blindelement, shielded, plastic (PC), fiberglass-reinforced, halogen-free, color black (RAL 9005).

Automatic ground contacting by spring contacts.

With a capacity of up to 6 shielded RJ45 connection modules of Category 6
_A
ISO, Class E
_Afor the establishing of transmission channels with up to 4plugged connections.
