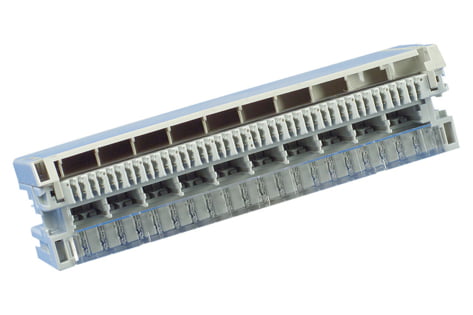

Connection Module VS88, 12 pairs (8 x 3) (R21080-08-03)

Connection Module VS88, 12 pairs (8 x 3) (R21080-08-03)

Double contact on jumper side only. For wire Ø 0.40-0.80 mm on cable side and 0.40-0.65 mm on jumper side.

Артикул: R21080-08-03 Категорія:

Scope of supply

  • Connection module

  • Cable cover

  • Wire guide element

Mechanical Data

Dimensions

47.0 mm x 140.0 mm x 30.0 mm / 1.85 in x 5.512 in x 1.181 in (W x H x D)

Color Code RAL

7035 Light gray

Material

plastic: PC, fiber-glass reinforced

Technical Data

Number of pairs

12

Wiring diagram

8 x 3-wire

Grid size

30 mm / 1.2 in

VS version

connection module

VS system

VS Modular
