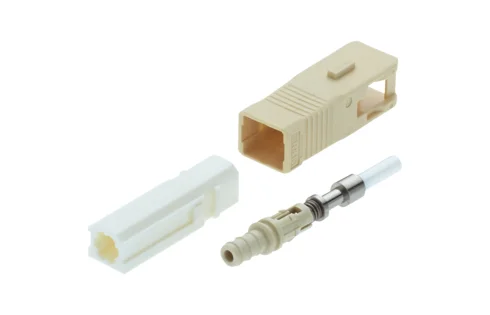

Field-terminable SC / PC connector, Grade Em. Color beige.
Connector housings and plastic dust cover
Ferrule holder incl. ferrule
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | SC connector acc. to IEC 61754-4 |
| Protection class IP | IP 20 |
| Connector class | connector |
| Protection class IP (A) | IP 20 |
| Connector type (A) | SC |
| Polishing plug (A) | NPC |
| Attenuation grade IL (A) | Em |
| Connector color (A) | beige |
| Fiber type | multimode (MM) |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Material | plastic: PBT |
Field-terminable connector, SC PC, grade Em, in compliance with IEC 61754-4 (SC). Connector housing made of PBT / UL 94 V-0, beige, (multimode PC) and plastic dust cover.
Glueless assembling, fiber fixation by clamping (crimp) and fiber end cleaving.
| Type | Image | Description | Product No. | |
|---|---|---|---|---|
| Optional accessories |  |
Crimp Set all Types E-2000™ / LC / SC, 3.0 mm cable, black | R813162 | ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |  |
Duplex Cable Industrial, 200/230, 2-fibers, 2000 m | R313540 | ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |  |
Tool box PCF 2.5mm Crimp and Cleave | R810636 | ADD TO WISH LISTREMOVE FROM WISH LIST |
Інструкції з встановлення | Завантажити |
