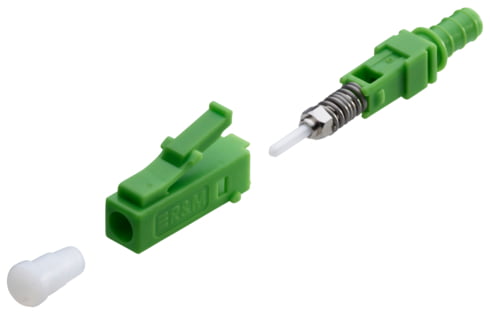

Connector LC APC, SM, green, 125.2 (+0.5/-0) µm, 0.5 µm con, patch cable (R851080)
Connector LC APC, SM, green, 125.2 (+0.5/-0) µm, 0.5 µm con, patch cable (R851080)
Locking type push-pull. Injection-molded PBT housing, UL 94 V-0 (flammability index). Ferrule with end-face of Ø 0.6 mm and 35° cone angle.
Mechanical Data
| Diameter | 125.2000000000 μm |
Technical Data
| Fiber type | Singlemode (SM) |
| Number of connectors (A) | 1 |
| Connector type (A) | LC |
| Connector color (A) | green |
| Polishing plug (A) | APC 8° |
| Protection class IP (A) | IP 20 |
| Attenuation grade IL (A) | C |
| Connector class | connector |
| Standard | UL Listed |
