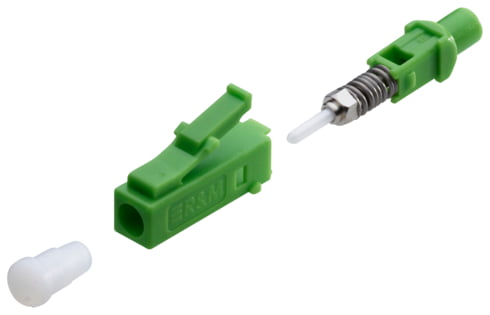

Connector LC APC, SM, green, 126.0 (+1/-0) µm, pigtail (R851077)

Connector LC APC, SM, green, 126.0 (+1/-0) µm, pigtail (R851077)

Locking type push-pull. Injection-molded PBT housing, UL 94 V-0 (flammability index). Ferrule with end-face of Ø 0.6 mm and 35° done angle.

Артикул: R851077 Категорія:

Scope of supply

  • Connector housing

  • Ferrule holder for pigtail incl. Ferrule

  • White plastic dust cover

Mechanical Data

Diameter

126.0000000000 μm

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

1

Connector type (A)

LC

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Attenuation grade IL (A)

C

Connector class

connector

Standard

UL Listed
