Name: CP Cable Cat. 5e, U/UTP, 4P, PVC, RJ45/u-RJ45/u, 7.5 m (R307083) - ДП "Сінергія"
SKU: R307083

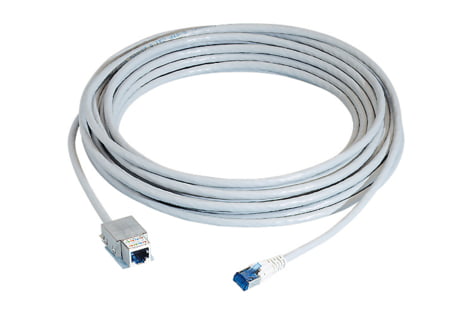

CP Cable Cat. 5e, U/UTP, 4P, PVC, RJ45/u-RJ45/u, 7.5 m (R307083)

RJ45/u connector + Cat. 5e connection module.

Cable identification: U/UTP

Outer jacket: PVC

Conductor diameter copper strand: AWG 26/7

Screened in pairs: no

Overall screen: no

Outer diameter: 5.1 mm

Артикул: R307083 Категорія: Misc

Technical Data

DESCRIPTION	VALUE/VALUE RANGE
Standard / norm	ISO/IEC 11801
Protection class IP	IP 20
PoE	Yes
Shielding connector (A)	unshielded
Connector type (A)	RJ45
Category connector (A)	Cat. 5e
Shielding connector (B)	unshielded
Connector type (B)	RJ45
Category connector (B)	Cat. 5e
Cable type	CP cable
Cable category	Cat. 5e
Shielding	U/UTP
Jacket material	PVC
Cable jacket characteristics	Cable, metal-free
Cable overall diameter	5.1 mm
Conductor	AWG 26/7
Number of wires	8
Stranding	4 pairs
Wire type	stranded wire

Mechanical Data

DESCRIPTION	VALUE/VALUE RANGE
Cable length	7.5 m / 25 ft
Color Code RAL	7032 Pebble gray

Technical drawing(s)

PDF
(0.07MB)

Patchcable-s/u-Customer Drawing

Type	Description	Product No.
Optional accessories	Color Coding RJ45 Connector, anthracite	R302342	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Color Coding RJ45 Connector, blue	R302343	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Color Coding RJ45 Connector, brown	R302344	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Color Coding RJ45 Connector, yellow	R302345	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Color Coding RJ45 Connector, gray	R302347	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Color Coding RJ45 Connector, green	R302348	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Color Coding RJ45 Connector, red	R302349	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Color Coding RJ45 Connector, violet	R302420	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Easy Latch RJ45 Connector, anthracite	R317100	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Easy Latch RJ45 Connector, blue	R317094	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Easy Latch RJ45 Connector, brown	R317095	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Easy Latch RJ45 Connector, yellow	R317096	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Easy Latch RJ45 Connector, gray	R317097	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Easy Latch RJ45 Connector, green	R317098	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Easy Latch RJ45 Connector, red	R317099	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Easy Latch RJ45 Connector, violet	R317093	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splash Sleeve IP54, transparent	R306064	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Coding "A" for RJ45 Connectors, anthracite	R25432	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Coding "B" for RJ45 Connectors, white	R25677	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Safe Clip	R304807	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Patch Guard RJ45	R313814	ADD TO WISH LISTREMOVE FROM WISH LIST
