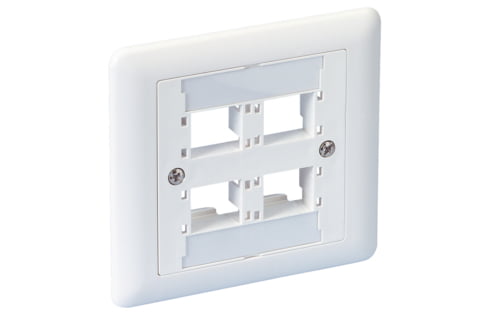

DM Global Outlet 80x86, 4x1-Port, pure white (R305151)

DM Global Outlet 80x86, 4x1-Port, pure white (R305151)

Suitable for duct-mounted (DM) installations (metal and plastic). For use with duct covers of min. 80 mm. Suitable for backboxes and floorbox module holders of Ø 60 mm in diameter or 56x56 mm cutouts.

Recommended depth for backboxes and floorboxes min. 70 mm.

Plastic: PC +ABS, halogen-free.

Артикул: R305151 Категорія:

Scope of supply

  • Cover frame 80x86 mm

  • 4-part faceplate 60x60 mm

  • M3x12 screws

  • Mounting plate, steel

  • Labelingstrip, blank

Environmental Characteristics

Operation temperature

-10 °C to +80 °C / +14 °F to +176 °F

Mechanical Data

Dimensions

80.0 mm x 86.0 mm / 3.15 in x 3.386 in (W x H)

Color Code RAL

9010 Pure white

Material

plastic: PC + ABS

Technical Data

Application area

mounting

Assembly

empty

Outlet type

outlet

Capacity (ports)

4 x 1

Standard

Halogen-free, in accordance with DIN/VDE 0472/815
