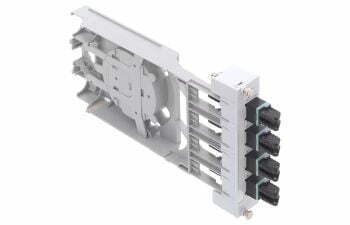

FiberModul 5.6HP, breakout, 6xLC-Duplex OM3/OM4, PC, ceramic (R817159)

FiberModul 5.6HP, breakout, 6xLC-Duplex OM3/OM4, PC, ceramic (R817159)

Артикул: R817159 Категорія:

Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions

  • Plastic front panel featuring Smatholes and mounting adapter 3U Global, equipped with
    6 x

    LC-Duplex

    adapters

Mechanical Data

Dimensions

28.0 mm x 129.0 mm x 225.0 mm / 1.102 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Fiber type

Multimode (MM)

Number of connectors (A)

6

Connector type (A)

LC-Duplex

Connector color (A)

turquoise/aqua

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

6

Sleeve material

ceramic

Version

breakout

Standard

UL Listed

Adapter in acc. with IEC 61754-20

  • Dimensions: 28 x 129 x 225 mm

  • Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: light gray (NCS 1005-R80B)

  • Color master module: medium gray (NCS 2502-B)

  • Assembled with 6 x

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

  • Optional:

    Visual coding, mechanical coding and lock protection.
