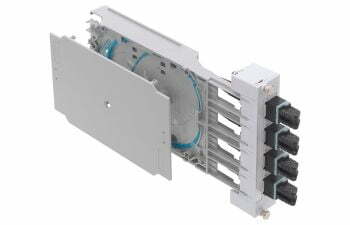

FiberModul 5.6HP, splice, 4xE-2000™-Compact OM2, PC, ceramic, Bm/3 (R817075)

FiberModul 5.6HP, splice, 4xE-2000™-Compact OM2, PC, ceramic, Bm/3 (R817075)

Артикул: R817075 Категорія:

Scope of supply

  • Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions

  • Plastic front panel featuring Smatholes and mounting adapter 3U Global, equipped with
    4 x

    E-2000™-Compact

    adapters, pigtails inserted and ready for splicing

Mechanical Data

Dimensions

28.0 mm x 129.0 mm x 225.0 mm / 1.102 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Multimode (MM)

Fiber class

OM2

Fiber diameter

G50 / 125 µm

Number of connectors (A)

4

Connector type (A)

E-2000™-Compact

Connector color (A)

beige

Color (A2)

orange

Lever- / frame-coding (A)

Color

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

3

Attenuation grade IL (A)

Bm

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

4

Sleeve material

ceramic

Version

splice

Standard

UL Listed

Adapter and connector in acc. with IEC 61754-15 and EN 186270

Pigtails in acc. with color code DIN VDE 0888

  • Dimensions: 28 x 129 x 225 mm

  • Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: light gray (NCS 1005-R80B)

  • Color master module: medium gray (NCS 2502-B)

  • Assembled with 4 x

    E-2000™-Compact adapter (LSHRJ) multimode, duplex adapter in acc. with IEC 61754-15:2009 and EN 186270. Flangeless body and integral quick-mounting clip. Zirconia (ceramic) alignment sleeve, metallic housing, material X10CrNi18-8, beige inner housing (multimode PC), orange coding clips (OM2), material PBT / UL 94 V-0, integral self-closing metal laser protection flaps, semi-transparent plastic dust cover, allowing optical testing with test lasers without removing the cover. Adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).


    Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

  • Assembled with 8 x

    Optional:

    Visual coding, mechanical coding and lock protection.
