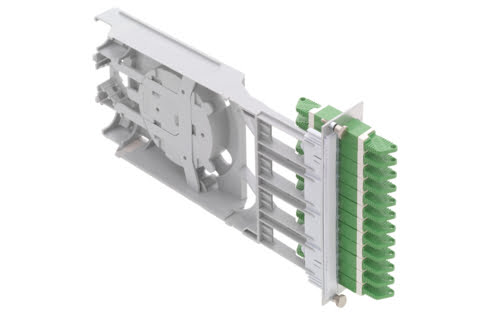

FiberModul 7HP, metal, breakout, 12xE-2000™ singlemode, PC, ceramic (R318966)

FiberModul 7HP, metal, breakout, 12xE-2000™ singlemode, PC, ceramic (R318966)

Артикул: R318966 Категорія:

Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions

  • Metal front panel equipped with
    12 x

    E-2000™

    adapters

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

12

Connector type (A)

E-2000™

Connector color (A)

blue

Color (A2)

blue

Lever- / frame-coding (A)

Color

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Rack mounting version

slide-in unit

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

breakout

Standard

Adapter acc. with IEC 61754-15 and EN 186270

UL Listed
