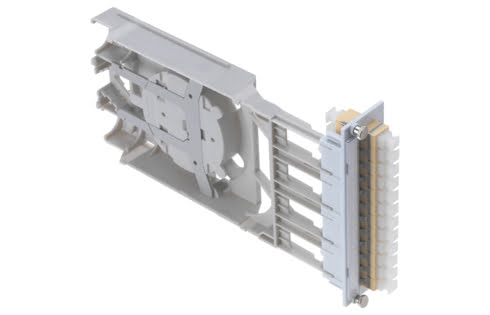

FiberModul 7HP, metal, breakout, 12xSC multimode, PC, ceramic (R318860)

FiberModul 7HP, metal, breakout, 12xSC multimode, PC, ceramic (R318860)

Артикул: R318860 Категорія:

Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions

  • Metal front panel equipped with
    12 x

    SC

    adapters

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Fiber type

Multimode (MM)

Number of connectors (A)

12

Connector type (A)

SC

Connector color (A)

beige

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Rack mounting version

slide-in unit

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

breakout

Standard

Adapter in acc. with IEC 61754-4

UL Listed

  • Dimensions: 35,2 x 128,6 x 225,2 mm

  • Material front panel: metal (AlMg1)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: metal color

  • Color master module: medium gray (NCS 2502-B)

  • Mounted with screws 12 x

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

  • Інструкції з встановлення

    Завантажити
