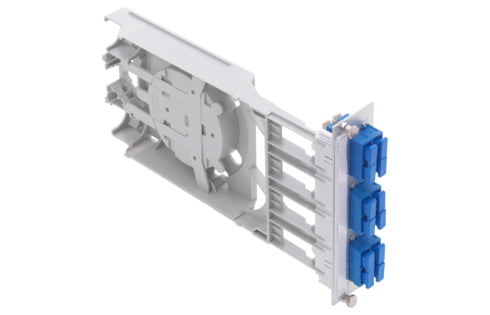

FiberModul 7HP, metal, breakout, 6xSC-Duplex singlemode, PC, ceramic (R318982)

FiberModul 7HP, metal, breakout, 6xSC-Duplex singlemode, PC, ceramic (R318982)

FiberModul 7HP, metal, breakout, 6xSC-Duplex singlemode, PC, ceramic (R318982)

Артикул: R318982 Категорія:

Scope of Supply

  • Slide-in unit, fastening material, labeling strips and installation instructions

  • Metal front panel equipped with
    6 x
    SC-Duplex adapters

Technical Data

DESCRIPTIONVALUE/VALUE RANGE
Standard / norm

UL Listed

Adapter in acc. with IEC 61754-4

Protection class IP

IP 20

Protection class IP (A)

IP 20

Number of connectors (A)6
Assembly

fully populated

Rack mounting version

slide-in unit

Capacity (ports)6
Version

breakout

Connector type (A)

SC-Duplex

Polishing plug (A)

PC

Connector color (A)

blue

Sleeve material

ceramic

Adapter fastening method

end cap

Fiber type

singlemode (SM)

Mechanical Data

DESCRIPTIONVALUE/VALUE RANGE
Dimensions35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)
Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

  • Up to 12 plugged connections on 7HP

  • Guaranteed bending radius of 35 mm

  • Pre-numbered front plates, extra labeling field

  • Easy detachable metal front panels

  • Choice of cable entry of 45° or 90°

  • Hold-down cross protecting the fibers

  • Up to 144 fibers per 19" 3U Global patch panel

Breakout module with integrated hold-down cross to protect the patch cord reserve, equipped with adapters, detachable metal front panel featuring per-numbered ports and offering individual labeling options.

Fitted with 6 x SC-Duplex adapter singlemode in acc. with IEC 61754-4. Body plus flange and two hexagonal nuts M2 plus integral quick-mounting clip, mounted with screws. Zirconia (ceramic) alignment sleeve, blue plastic housing (singlemode) / UL 94 V-0, plastic dust covers. Adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).

Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

Mechanical specifications:

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N (per connector)

Features:

  • Dimensions: 35 (7HP) x 129 (3U) x 225 mm (W x H x D)

  • Material front panel: metal (AlMg1)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: metal color

  • Color master module: medium gray (NCS 2502-B)
