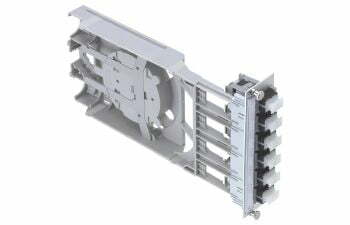

FiberModul 7HP, metal, breakout, 6xSC-RJ singlemode, PC, ceramic (R817138)

FiberModul 7HP, metal, breakout, 6xSC-RJ singlemode, PC, ceramic (R817138)

Артикул: R817138 Категорія:

Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions

  • Metal front panel equipped with
    6 x

    SC-RJ

    adapters

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

6

Connector type (A)

SC-RJ

Connector color (A)

blue

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

6

Sleeve material

ceramic

Version

breakout

Standard

Adapter in acc. with IEC 61754-24

UL Listed

  • Dimensions: 35,2 x 128,6 x 225,2 mm

  • Material front panel: metal (AlMg1)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: metal color

  • Color master module: medium gray (NCS 2502-B)

  • Assembled with 6 x

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 40 N (per connector)

  • Інструкції з встановлення

    Завантажити
