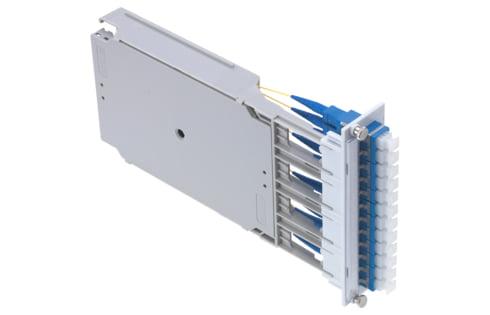

FiberModul 7HP, metal, splice, 12xSC G.652.D, APC, ceramic, C/1 (R318554)

FiberModul 7HP, metal, splice, 12xSC G.652.D, APC, ceramic, C/1 (R318554)

Артикул: R318554 Категорія:

Scope of supply

  • Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions

  • Metal front panel equipped with
    12 x

    SC

    adapters, pigtails inserted and ready for splicing

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

12

Connector type (A)

SC

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

slide-in unit

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-4

UL Listed

Pigtails in acc. with color code DIN VDE 0888

  • Dimensions: 35,2 x 128,6 x 225,2 mm

  • Material front panel: metal (AlMg1)

  • Material master module: plastic (PC+ABS halogen-free, UL 94 V-0)

  • Color front panel: metal color

  • Color master module: medium gray (NCS 2502-B)

  • Mounted with screws 12 x

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

  • Assembled with 12 x

  • Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB

  • Return loss (RL)Grade 1: ≥ 60 dB (typical ≥ 80 dB)

  • Mating cycles: delta IL < 0.2 dB after 500 mating cycles

  • Pull-out force fiber pigtail: ≥ 5 N

  • Інструкції з встановлення
