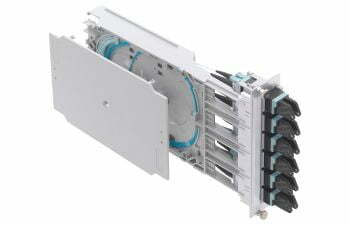

Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions
Metal front panel equipped with
6 x
E-2000™-Compact
adapters, pigtails inserted and ready for splicing
Dimensions: 35,2 x 128,6 x 225,2 mm
Material front panel: metal (AlMg1)
Material master module: plastic (PC+ABS halogen-free, UL 94 V-0)
Color front panel: metal color
Color master module: medium gray (NCS 2502-B)
Assembled with 6 x
E-2000™-Compact (LSHRJ) adapter singlemode, duplex adapter in acc. with IEC 61754-15 and EN 186270. Flangeless body and snap-in frame plus coding clip (gray). For fitting into 14.9 x 19.5 mm with amaterial thickness of between 1.5 mm and 2.0 mm, for screwless mounting. Zirconia (ceramic) alignment sleeve, metallic housing, material X10CrNi10-8, blue inner housing (singlemode PC), blue coding clips, material PBT / UL 94 V-0, integral self-closing metal laser protection flaps, semi-transparent plastic dust cover, allowing optical testing with test lasers without removing the cover. Adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).
Optical specifications:
Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4
Mechanical specifications:
Mating cycles: min. 1000
Pull-out force: min. 70 N
Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4
Mating cycles: min. 1000
Pull-out force: min. 70 N
Assembled with 12 x
Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50dB / typical ≤ 0.25 dB
Return loss (RL) Grade 2: ≥ 45 dB (typical ≥ 55 dB)
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles
Pull-out force fiber pigtail: ≥ 5 N
