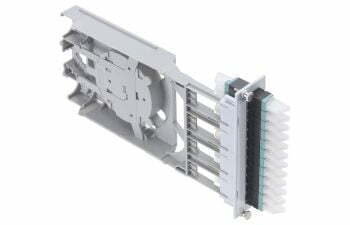

FiberModul 7HP, plastic, breakout, 12xE-2000™ OM1, PC, ceramic (R817139)

FiberModul 7HP, plastic, breakout, 12xE-2000™ OM1, PC, ceramic (R817139)

Артикул: R817139 Категорія:

Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with
    12 x

    E-2000™

    adapters

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Fiber type

Multimode (MM)

Number of connectors (A)

12

Connector type (A)

E-2000™

Connector color (A)

beige

Color (A2)

blue

Lever- / frame-coding (A)

Color

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Rack mounting version

slide-in unit

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

breakout

Standard

Adapter acc. with IEC 61754-15 and EN 186270

UL Listed

Breakout module with integrated hold-down cross to protect the patch cord reserve, equipped with adapters, detachable plastic front panel featuring per-numbered ports and offering individual labeling options, optional extension to 8HP.


Features:

  • Dimensions: 35,2 x 128,6 x 225,2 mm

  • Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: light gray (NCS 1005-R80B)

  • Color master module: medium gray (NCS 2502-B)

  • Dimensions: 35,2 x 128,6 x 225,2 mm

  • Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: light gray (NCS 1005-R80B)

  • Color master module: medium gray (NCS 2502-B)

  • Mounted with screws 12 x

  • E-2000™ adapter (LSH) multimode, simplex adapter in acc. with IEC 61754-15 and EN 186270. Adapter body plus flange and two integral hexagonal nuts M2. Zirconia (ceramic) alignmentsleeve, beige housing (multimode), blue coding frame (OM1), material PBT / UL 94 V-0, integral self-closing metal laser protection flaps, semi-transparent plastic dust cover, allowing optical testing with test lasers without removing the cover. Adapter qualified in accordance with IEC 61753-1 category U (uncontrolled environment).

  • Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 1000

  • Pull-outforce: min. 70 N
