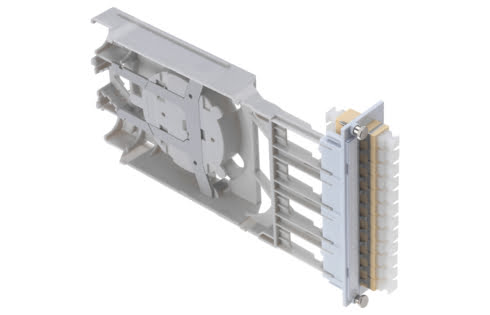

FiberModul 7HP, plastic, breakout, 12xSC singlemode, PC, ceramic (R318988)

FiberModul 7HP, plastic, breakout, 12xSC singlemode, PC, ceramic (R318988)

FiberModul 7HP, plastic, breakout, 12xSC singlemode, PC, ceramic (R318988)

Артикул: R318988 Категорія:

Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with
    12 x

    SC

    adapters

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

12

Connector type (A)

SC

Connector color (A)

blue

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Rack mounting version

slide-in unit

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

breakout

Standard

Adapter in acc. with IEC 61754-4

UL Listed
