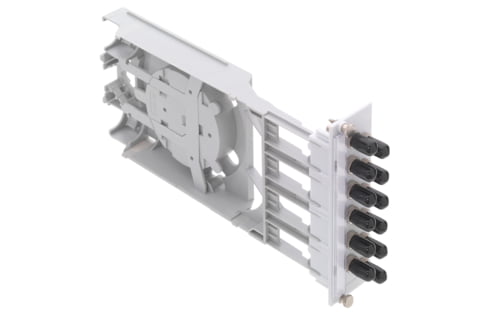

FiberModul 7HP, plastic, breakout, 12xST multimode, PC, ceramic (R318909)

Артикул: R318909 Категорія: Misc

Slide-in unit, fastening material, labeling strips and installation instructions
Plastic front panel equipped with
12 x
ST
adapters

Mechanical Data

Dimensions	35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)
Color	module, medium gray (NCS 2502-B) / front panel, light gray (NCS 1005-R80B)
Material	PC + ABS halogen-free, UL 94 V-0

Technical Data

Fiber type	Multimode (MM)
Number of connectors (A)	12
Connector type (A)	ST
Connector color (A)	metallic
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Rack mounting version	slide-in unit
Adapter fastening method	screw
Assembly	fully populated
Capacity (ports)	12
Sleeve material	ceramic
Version	breakout
Standard	Adapter type BFOC/2.5 in acc. with IEC 61754-2 UL Listed
