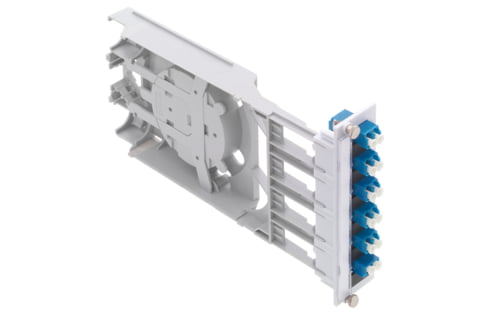

FiberModul 7HP, plastic, breakout, 6xLC-Duplex singlemode, PC, ceramic (R318993)

FiberModul 7HP, plastic, breakout, 6xLC-Duplex singlemode, PC, ceramic (R318993)

Артикул: R318993 Категорія:

Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with
    6 x

    LC-Duplex

    adapters

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

6

Connector type (A)

LC-Duplex

Connector color (A)

blue

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Rack mounting version

slide-in unit

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

6

Sleeve material

ceramic

Version

breakout

Standard

Adapter in acc. with IEC 61754-20

UL Listed

Інструкції з встановлення

Завантажити
