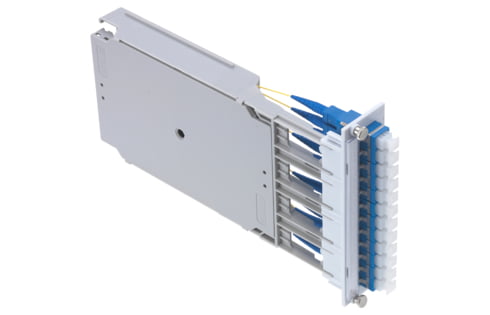

FiberModul 7HP, plastic, splice, 12xSC G.652.D, APC, ceramic, C/1 (R318961)

FiberModul 7HP, plastic, splice, 12xSC G.652.D, APC, ceramic, C/1 (R318961)

Артикул: R318961 Категорія:

Scope of supply

  • Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with
    12 x

    SC

    adapters, pigtails inserted and ready for splicing

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

12

Connector type (A)

SC

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

slide-in unit

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-4

UL Listed

Pigtails in acc. with color code DIN VDE 0888

Splice module with pigtail fiber reserve and splice tray radius 35 mm, with snap-open cover, ready for splicing, integrated hold-down cross to protect the pigtail reserve, detachable plastic front panel featuring per-numbered ports and offering individual labeling options, optional extension to 8HP.

Fitted with 12 x SC adapters singlemode in acc. with IEC 61754-4. Body plus flange and two hexagonal nuts M2 plus integral quick-mounting clip, mounted with screws. Zirconia (ceramic) alignment sleeve, green housing (singlemode), material PPA-GF50 / UL 94 V-0, semi-transparent dust caps made of PP, allowing optical testing with test lasers without removing the cover. Adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).
Optical specifications:
Delta insertion loss: = 0.2 dB, testing method acc. to IEC 61300-3-4
Mechanical specifications:
Mating cycles: min. 500
Pull-out force: min. 70 N

and 12 x pigtails with semi-tight buffer PA/PBT, Ø 0.9 mm, color in acc. with color code DIN/VDE 0888, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length 2.5 m. Fitted with SC connector in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connector tunedin accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment). Green connector housing (singlemode), material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and dust cover, material plastic.
Optical specifications (random mated):
Performance in acc. with IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 1: = 60 dB (typical = 80 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force fiber pigtail: = 5 N Features: Dimensions: 35 (7HP) x 129 (3U) x 225 mm (W x H x D) Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0) Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0) Color front panel: light gray (NCS 1005-R80B) Color master module: medium gray (NCS 2502-B)
