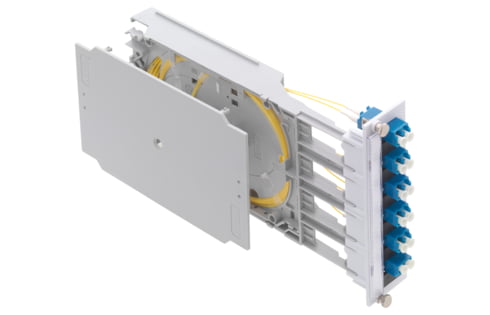

FiberModul 7HP, plastic, splice, 6xLC-Duplex G.652.D, APC, ceramic, C/1 (R318963)

FiberModul 7HP, plastic, splice, 6xLC-Duplex G.652.D, APC, ceramic, C/1 (R318963)

FiberModul 7HP, plastic, splice, 6xLC-Duplex G.652.D, APC, ceramic, C/1 (R318963)

Артикул: R318963 Категорія:

Scope of supply

  • Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with
    6 x

    LC-Duplex

    adapters, pigtails inserted and ready for splicing

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

6

Connector type (A)

LC-Duplex

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

slide-in unit

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

6

Sleeve material

ceramic

Version

splice

Standard

UL Listed

Adapter and connector in acc. with IEC 61754-20

Pigtails in acc. with color code DIN VDE 0888

Splice module with pigtail fiber reserve and splice tray radius 35 mm, with snap-open cover, ready for splicing, integrated hold-down cross to protect the pigtail reserve, detachable plastic front panel featuring per-numbered ports and offering individual labeling options, optional extension to 8HP.

Fitted with 6 x LC-Duplex singlemode adapter in acc. with IEC 61754-20. Adapter body plus flange and integrated quick-mounting clip and M2 thread, color metallic, material X10CrNi18-8, fastened with screws. Housing green (singlemode APC), material PBT / UL 94 V-0, zirconia(ceramic) alignment sleeve, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the covers. The adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).
Optical specifications:
Delta insertion loss: = 0.2 dB, testing method acc. to IEC 61300-3-4
Mechanical specifications:
Mating cycles: min. 500
Pull-out force: min. 70 N

and 12 x pigtails with semi-tight buffer PA/PBT, Ø 0.9 mm, color in acc. withcolor code DIN/VDE 0888, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length 2.5 m. Fitted with LC connector in acc. with IEC 61754-20. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment). Green connector housing (singlemode), material PEI / UL 94 V-0, green strain relief and white plastic dust cover.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 1: = 60 dB (typical = 80 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force fiber pigtail: = 5 NFeatures: Dimensions: 35 (7HP) x 129 (3U) x 225 mm (W x H x D) Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0) Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0) Color front panel: light gray (NCS 1005-R80B) Color master module: medium gray (NCS 2502-B)
