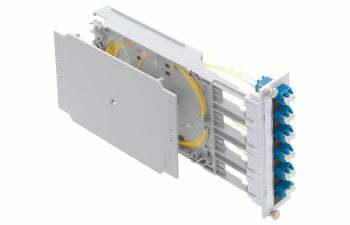

FiberModul 7HP, plastic, splice, 6xLC-Duplex OM1, PC, ceramic, Bm/3 (R817043)

FiberModul 7HP, plastic, splice, 6xLC-Duplex OM1, PC, ceramic, Bm/3 (R817043)

Артикул: R817043 Категорія:

Scope of supply

  • Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with
    6 x

    LC-Duplex

    adapters, pigtails inserted and ready for splicing

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Multimode (MM)

Fiber class

OM1

Fiber diameter

G50 / 125 µm

Number of connectors (A)

6

Connector type (A)

LC-Duplex

Connector color (A)

beige

Color (A2)

non

Lever- / frame-coding (A)

Color

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

3

Attenuation grade IL (A)

Bm

Rack mounting version

slide-in unit

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

6

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-20

UL Listed

Pigtails in acc. with color code DIN VDE 0888
