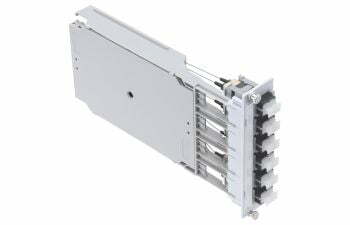

FiberModul 7HP, plastic, splice, 6xSC-RJ OM1, PC, ceramic, Bm/3 (R817051)

FiberModul 7HP, plastic, splice, 6xSC-RJ OM1, PC, ceramic, Bm/3 (R817051)

FiberModul 7HP, plastic, splice, 6xSC-RJ OM1, PC, ceramic, Bm/3 (R817051)

Артикул: R817051 Категорія:

Scope of supply

  • Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with
    6 x

    SC-RJ

    adapters, pigtails inserted and ready for splicing

Mechanical Data

Dimensions

35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Multimode (MM)

Fiber class

OM1

Fiber diameter

G50 / 125 µm

Number of connectors (A)

6

Connector type (A)

SC-RJ

Connector color (A)

beige

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

3

Attenuation grade IL (A)

Bm

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

6

Sleeve material

ceramic

Version

splice

Standard

Adapter in acc. with IEC 61754-24 and connector in acc. with IEC 61754-4

UL Listed

Pigtails in acc. with color code DIN VDE 0888

  • Dimensions: 35,2 x 128,6 x 225,2 mm

  • Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

  • Material master module: plastic (PC+ABS halogen-free, UL 94 V-0)

  • Color front panel: light gray (NCS 1005-R80B)

  • Color master module: medium gray (NCS 2502-B)

  • Assembled with 6 x

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 40 N (per connector)

  • Assembled with 12 x

  • Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB

  • Return loss (RL) Grade 3: ≥ 35 dB

  • Mating cycles: delta IL < 0.2 dB after 500 mating cycles

  • Pull-out force fiber pigtail: ≥ 5 N
