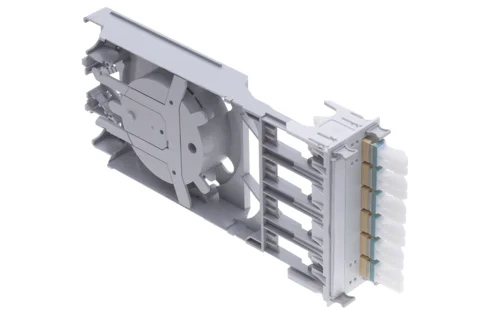

FiberModul HD, breakout, 12xE-2000™ singlemode, APC, ceramic (R515074)

FiberModul HD, breakout, 12xE-2000™ singlemode, APC, ceramic (R515074)

FiberModul HD, breakout, 12xE-2000™ singlemode, APC, ceramic (R515074)

Designed for 19" 1U HD patch panel.

Артикул: R515074 Категорія:

Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with adapters

Mechanical Data

Dimensions

43.2 mm x 109.9 mm x 232.0 mm / 1.701 in x 4.327 in x 9.134 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

12

Connector type (A)

E-2000™

Connector color (A)

green

Color (A2)

white

Lever- / frame-coding (A)

Color

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

breakout

Standard

Adapter in acc. with IEC 61754-4

UL Listed
