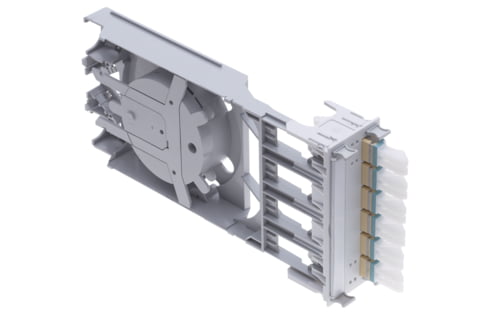

FiberModul HD, breakout, 12xLC-Duplex OM3/OM4, PC, ceramic (R814771)

Designed for 19" 1U HD patch panel.

Артикул: R814771 Категорія: Misc

Slide-in unit, fastening material, labeling strips and installation instructions
Plastic front panel equipped with adapters

Mechanical Data

Technical Data

Fiber type	Multimode (MM)
Number of connectors (A)	12
Connector type (A)	LC-Duplex
Connector color (A)	turquoise/aqua
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Rack mounting version	slide-in unit
Adapter fastening method	end cap snap-in
Assembly	fully populated
Capacity (ports)	12
Sleeve material	ceramic
Version	breakout
Standard	Adapter in acc. with IEC 61754-4 UL Listed

Dimensions: 43.2 x 109.9 x 232mm

Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

Color front panel: light gray (NCS 1005-R80B)

Color master module: medium gray (NCS 2502-B)

Assembled with 12 x

Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

Mating cycles: min. 500

Pull-out force: min. 70 N
