FiberModul HD, breakout, 6xLC-Duplex singlemode, APC, ceramic (R515087)

Name: FiberModul HD, breakout, 6xLC-Duplex singlemode, APC, ceramic (R515087) - ДП "Сінергія"
SKU: R515087

FiberModul HD, breakout, 6xLC-Duplex singlemode, APC, ceramic (R515087)

Designed for 19" 1U HD patch panel.

Артикул: R515087 Категорія: Misc

Scope of supply

Slide-in unit, fastening material, labeling strips and installation instructions
Plastic front panel equipped with adapters

Mechanical Data

Dimensions	43.2 mm x 109.9 mm x 232.0 mm / 1.701 in x 4.327 in x 9.134 in (W x H x D)
Color Code NCS	S 2502-B
Material	plastic: PC, halogen-free

Technical Data

Fiber type	Singlemode (SM)
Number of connectors (A)	6
Connector type (A)	LC-Duplex
Connector color (A)	green
Polishing plug (A)	APC 8°
Protection class IP (A)	IP 20
Rack mounting version	slide-in unit
Adapter fastening method	end cap snap-in
Assembly	fully populated
Capacity (ports)	6
Sleeve material	ceramic
Version	breakout
Standard	Adapter in acc. with IEC 61754-4 UL Listed

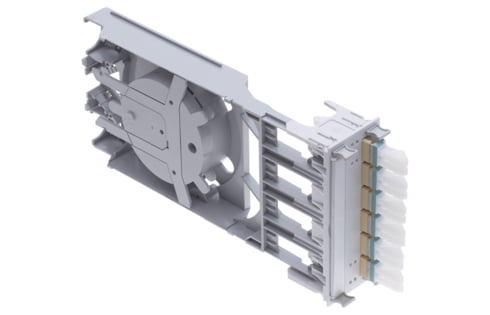

Breakout module with integrated hold-down cross to protect the patch cord reserve, equipped with adapters, detachable plastic front panel featuring per-numbered ports, tool-free locking and unlocking system and offering individual labeling options.

Features:

Dimensions: 43.2 x 109.9 x 232 mm

Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

Color front panel: light gray (NCS 1005-R80B)

Color master module: medium gray (NCS 2502-B)

Dimensions: 43.2 x 109.9 x 232 mm

Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

Color front panel: light gray (NCS 1005-R80B)

Color master module: medium gray (NCS2502-B)

Assembled with 6 x

Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

Mating cycles: min. 500

Pull-out force: min. 70 N
