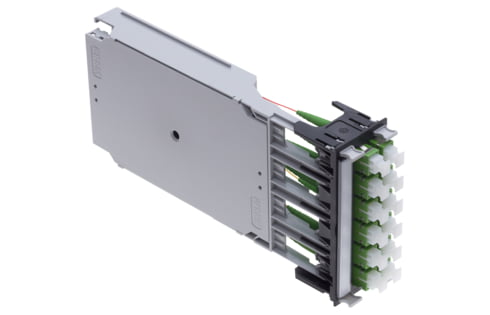

FiberModul HD, splice, 12xE-2000™ G.652.D, APC, ceramic, C/1, black (R515086)

FiberModul HD, splice, 12xE-2000™ G.652.D, APC, ceramic, C/1, black (R515086)

Designed for 19" 1U HD patch panel.

Артикул: R515086 Категорія:

Scope of supply

  • Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with adapters, pigtails inserted and ready for splicing

Mechanical Data

Dimensions

43.2 mm x 109.9 mm x 232.0 mm / 1.701 in x 4.327 in x 9.134 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

12

Connector type (A)

E-2000™

Connector color (A)

green

Color (A2)

white

Lever- / frame-coding (A)

Color

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-20

UL Listed

Pigtails in acc. with color code DIN VDE 0888

Splice module with pigtail fiber reserve and splice tray radius 35 mm, with snap-open cover, ready for splicing, integrated hold-down cross to protect the pigtailreserve, detachable plastic front panel featuring per-numbered ports, tool-free locking and unlocking system and offering individual labeling options.


Features:

  • Dimensions: 43.2 x 109.9 x 232 mm

  • Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: jet black (RAL 9005)

  • Color master module: medium gray (NCS 2502-B)

  • Dimensions:43.2 x 109.9 x 232 mm

  • Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: jet black (RAL 9005)

  • Color master module: medium gray (NCS 2502-B)

  • Assembled with 12 x

    E-2000™ adapter (LSH) singlemode, simplex adapter in acc. with IEC 61754-15 and EN 186270. Flangeless body and integral quick-mounting clip. Zirconia (ceramic) alignment sleeve, green housing (singlemode), white coding frame, material PBT / UL 94 V-0, integral self-closing metal laser protection flaps, semi-transparent plastic dust cover, allowing optical testing with test lasers without removing the cover. Adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).


    Optical specifications:

  • Delta insertion loss: ≤0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

  • Assembled with 12 x

  • Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB

  • Return loss (RL) Grade 1: ≥ 60 dB (typical ≥ 80 dB)

  • Mating cycles: delta IL < 0.2 dB after 1000 mating cycles

  • Pull-out force fiber pigtail: ≥ 5 N
