FiberModul HD, splice, 12xE-2000™ G.652.D, APC, ceramic, C/1 (R515078)

FiberModul HD, splice, 12xE-2000™ G.652.D, APC, ceramic, C/1 (R515078)

FiberModul HD, splice, 12xE-2000™ G.652.D, APC, ceramic, C/1 (R515078)

Designed for 19" 1U HD patch panel.

Артикул: R515078 Категорія:

Scope of supply

  • Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with adapters, pigtails inserted and ready for splicing

Mechanical Data

Dimensions

43.2 mm x 109.9 mm x 232.0 mm / 1.701 in x 4.327 in x 9.134 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

12

Connector type (A)

E-2000™

Connector color (A)

green

Color (A2)

white

Lever- / frame-coding (A)

Color

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-20

Pigtails in acc. with color code DIN VDE 0888

UL Listed

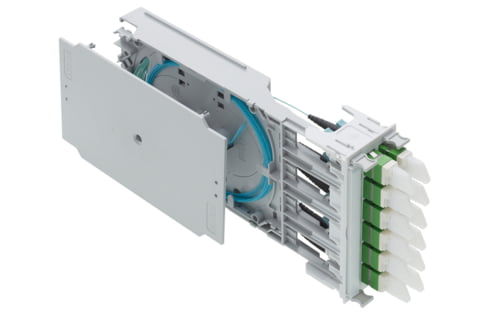

Splice module with pigtail fiber reserve and splice tray radius 35 mm, with snap-open cover, ready for splicing, integrated hold-down cross to protect the pigtail reserve, detachable plastic front panel featuring per-numbered ports, tool-free locking and unlocking system and offering individual labeling options.

Fitted with 12 x E-2000™ adapter (LSH) singlemode in acc. with IEC 61754-15 and EN 186270. Flangeless body and integral quick-mounting clip, mounted screwless. Zirconia (ceramic) alignment sleeve, green housing (singlemode), white coding frame, material PBT / UL 94 V-0, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the cover. Adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).
Optical specifications:
Delta insertion loss: = 0.2 dB, testing method acc. to IEC 61300-3-4
Mechanical specifications:
Mating cycles: min. 1000
Pull-out force: min. 70 N

and 12 x pigtails with semi-tight buffer PA/PBT, Ø 0.9 mm, color in acc. with color code DIN/VDE 0888, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length 2.5 m. Fitted with E-2000™ (LSH) connector in acc. with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connector tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment), green connector housing (singlemode) and white lever, material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance in acc. with IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 1: = 60 dB (typical = 80 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles Pull-out force fiber pigtail: = 5 NFeatures: Dimensions: 43.2 x 109.9 x 232 mm (W x H x D) Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0) Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0) Color front panel: light gray (NCS 1005-R80B) Color master module: medium gray (NCS 2502-B)
