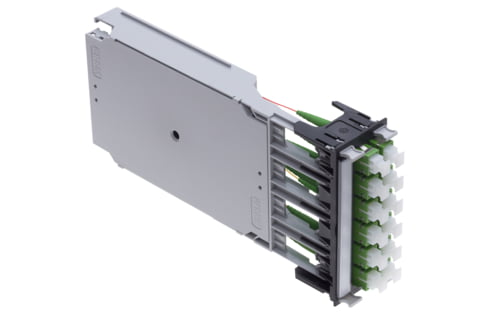

FiberModul HD, splice, 12xSC G.652.D, APC, ceramic, C/1, black (R515084)

FiberModul HD, splice, 12xSC G.652.D, APC, ceramic, C/1, black (R515084)

Designed for 19" 1U HD patch panel.

Артикул: R515084 Категорія:

Scope of supply

  • Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions

  • Plastic front panel equipped with adapters, pigtails inserted and ready for splicing

Mechanical Data

Dimensions

43.2 mm x 109.9 mm x 232.0 mm / 1.701 in x 4.327 in x 9.134 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

12

Connector type (A)

SC

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-20

UL Listed

Pigtails in acc. with color code DIN VDE 0888

  • Dimensions: 43.2 x 109.9 x 232mm

  • Material front panel: plastic (PC, fiber-glass reinforced, halogen-free UL 94 V-0)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: jet black (RAL 9005)

  • Color master module: medium gray (NCS 2502-B)

  • Assembled with 12 x

    SC adapter singlemode, simplex adapter in acc. with IEC 61754-4. Flangeless body and integrated quick-mounting clip. Zirconia (ceramic) alignment sleeve, green housing (singlemode), material PPA-GF50 / UL 94 V-0, semi-transparent dust cap made of PP, allowing optical testing with test lasers without removing the cover. Adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).


    Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

  • Assembled with 12 x

  • Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB

  • Return loss (RL) Grade 1: ≥ 60 dB (typical ≥ 80 dB)

  • Mating cycles: delta IL < 0.2 dB after 500 mating cycles

  • Pull-out force fiber pigtail: ≥ 5 N
